Hofmann Megaplan
afbalancerings-maskiner
MEGASPIN 220
Neat and compact, but big on features – extremely user friendly
- Wheel balancer with automatic data entry for distance and diameter – Virtual sonar for width aproximation
- Digital Display
- Rim-width: 1,5″ to 20″
- Rim-diameter: 10″ to 30″
- Max. wheeldiameter: 1200 mm
- Max. wheelwidth: 530 mm
- Max. wheelweight: 75 kg
- Rotation: 100 rpm
- 220 V / 500 W
MEGASPIN 220V
Our smallest machine with display. Neat and compact but BIG on features.
- Wheel balancer with automatic data entry for distance and diameter – Virtual sonar for width aproximation
- Video display 17″
- Electric wheel brake and standard clamping
- Automatic approach system to stop the wheel near the exact point of application of the counterweight
- 6 o’clock laser line and led light inside the rim
- Wheel guard up to 34″ as standard
- Rim-width: 1,5″ to 20″
- Max. wheeldiameter: 1200 mm
- Max. wheel width: 530 mm
- Max. wheel weight: 75 kg
- Rotation: 100 rpm
MEGASPIN 420P
With pneumatic clamping system MEGACLAMP
- Automatic entry for distance and diameter. Automatic touchless entry of width
- Laser pointer for inner and outer stick-on weights
- Ergonomic, wide working space inside the rim with LED light
- Electric brake for weight application position
- OWB – Feature to optimize time and weight
- Digital display
- With Automatic Width AUTO SENSE
- Pneumatic clamping

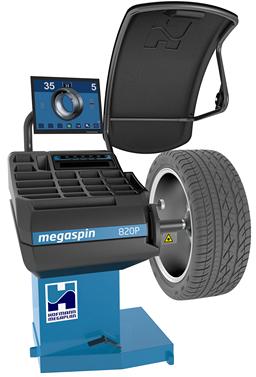

MEGASPIN 820P
With laser point accuracy. NO CHECK SPIN. Automatic entry for distance and diameter.
- Automatic touchless entry of width.
- Laser pointer for inner and outer stick-on weights.
- Ergonomic, wide working space inside the rim with LED light.
- OWB – Feature to optimize time and weight
- Electric brake for weight application position.
- 17″ flat screen.
- With Automatic Width AUTO SENSE.
- Pneumatic locking
MEGASPIN FAST TOUCH
The revolutionary wheel balancer with fast touch technology.
Megaspin Fast Touch revolutionizes the wheel balancing experience through the innovative combination of a laser point and a line laser.
With the simple movement of the wheel, the lasers calculate distance and diameter of the rim, while the Auto Sense sonar measures its width, enabling the rapidand precise detection of all parameters necessary to accurately identify wheel unbalance. Subsequently, the laser pointer also indicates the exact position for theapplication of adhesive counterweights inside the rim.
- Laser pointer for stick-on weights
- OWB – suggests a single ideal correction plane instead of two
- Electric brake and pneumatic locking in position of the wheel
- 17″ touch screen
- AVS Sonar optional
MEGASPIN 3200P
Super fast full automatic high end balancer and tyre diagnostic centre
New super fast 3D laser scanner balancer for automatic reading of wheel measurements in just 6,4”, including: rim and tyre runout – direct matching – single-point tread depth – tyre set (indicates the best wheel position on the vehicle) – Hubmatch – OWB One weight balancing innovative program. Rim data is taken automically via laser and sonar.
- No gauges.
- Runout of rim
- Runout of tire
- Threat depth
- Automatic brake and indication of the weight position with laser spot
- TFT Touch-Screen
- Automatic positioning by step motor
- Konicity measurement
- A4 printer for report print out (reports customizable)
- Position laser for stick on weights (steel mode)
- Pneumatic wheel clamping
- OWB — One Weight Balancing
- Incl. all devices for calibration
- ZERO WEIGHT wheel lift (option)
MEGASPIN on Car Balancer
Digital balancer
- 2 Speed system to spin any kind of vehicle at the most suitable
- Speed: High speed for cars and low speed for trucks and buses
- Automatic sequence for all operations: mark the wheel with reflecting tape, spin the wheel, add the calibration weight on the reference position, spin the wheel again, read the unbalance value, remove the calibration weights, and apply the weights shown on the panel
- Microprocessor based program with infrared photocell, adjustable in the height: perfect balancing of even the most critical wheels in 2 spins only
Vi forhandler alle maskiner fra Hofmann Megaplans sortiment, så fandt du ikke, hvad du søgte, så klik ind på Hofmann Megaplans hjemmeside her >>
Ring gerne til os, for mere information
T: +45 56 27 44 12
MEGASPIN 630
Automatic digital wheel balancing machine suitable for truck, bus and car wheels with innovative lift
-
Display panel with immediate interface to ease the operation
-
Automatic gauge for a correct measurement of distance and diameter
-
Electric brake to lock the wheel and to ease the application of weights
-
The innovative spindle shaft that lowers, guarantees a safer and easier centring even with large wheels and improves balancing accuracy
-
Laser line for the correct application of stick-on weights
-
LA Sonar system for automatic detection of rim width
-
Spacious and sturdy rotational weight-tray with differentiated compartments for housing cones, clip weights, alu, grippers
-
Intuitive and user-friendly SPLIT, OPT, ALU programs
MEGASPIN 650
Automatic video wheel balancing machine suitable for truck, bus and car wheels with innovative lift
- Touch screen with immediate interface to ease the operation
- Automatic gauge for a correct measurement of distance and diameter
- Electric brake to lock the wheel and to ease the application of weights
- Complete diagnostics of the wheel in all its dimensions: LA Sonar system for automatic detection of rim width and, with laser pointer, for measuring the lateral eccentricity of the tyre shoulder
- EMS sonar device for quick radial eccentricity measurement during the normal balancing cycle
- The innovative spindle shaft that lowers, guarantees a safer and easier centring even with large wheels and improves balancing accuracy
- Spacious and sturdy rotational weight-tray with differentiated compartments for housing cones, clip weights, alu, grippers
- Intuitive and user-friendly SPLIT, OPT, ALU programs
MEGAMOUNT 2-30T
Electro-hydraulic universal tyre changer for wheels of trucks and buses
Universal electro-hydraulic truck tyre changer for tubeless or tube-type tyres for trucks and buses with a maximum diameter of 1640 mm and a maximum width of 850 mm. Designed for intensive and professional use, the self-centring chuck locks grooved and split ring rims from 14″ to 30″.
Clamping range: 14″–30″ I Max. wheel diameter: 1640 mm (65″) I Max. wheel width: 850 mm (34″) | Max. wheel weight: 1200 kg (2645 lbs) I Max. torque: 25,000 Nm I Speed of rotation: 7 rpm I Three-phase chuck: 1.5 kW (2 hp) I Power supply: 230 V/3/50–60 Hz I Net weight: 605 kg (1333 lbs)
MEGAMOUNT T46
Semi-automatic tyre changer for wheels of trucks, buses, tractors and earthmoving equipment with wheel up to 46″
- Electro-hydraulic tyre changer for tubeless tires for trucks, buses, tractors and earthmoving equipment.
- Clamping range without extensions is 14″ to 42″, expandable up to 56″ with extensions.
- Two rotation speed hydraulic chuck with 5 different rim locking positions
- Manual lifting and traversing of the tool-holder arm
- Manual translational movement of the tool-holder carriage with two different working positions
- Mobile control unit can be moved in the area of deployment. Anti-crush cable.
Clamping range: 14″–42″ (56″ with extensions) I Max. wheel diameter: 2300 mm (90,5″) I Max. wheel width: 1065 mm (42″) | Max. wheel weight: 1500 kg I Motor: 1.3 – 1.8 kW – 400V – 50Hz – 3ph I Net weight: 770 kg I Gross weight: 816 kg I Noise level: < 70 dB
PAGURO
The ideal combination: use your truck tyre changer as support for the balancer. No need to waste space for a second machine.
Time saving and user-friendly because tyres can be placed directly on the shaft of the machine supported by movement of the tyre changer. Suitable for all truck tyre changers with claws to fix the tyre.
- Remote controll for all functions of the machine.
- Easy and quick mounting system on the tyre changer
- Manually operated spin system
- Digital portable display
- Powered by rechargeable batteries with external power supply (220 V AC, 12V CC, 24 V CC)
- lots of accessories
- special for mobile tyre services
